工業IGBT模塊-N3
產品概述/General Description:
電壓等級:1200V
電流等級:75A/100A/150A/200A/300A
電路拓?fù)洌?單元
微溝槽柵/場終止技術
低飽和壓降
低開關損耗
高可靠性
高RBSOA能力
高短路耐量
應用領域/Applications:
變頻器
伺服驅動器
電機傳動

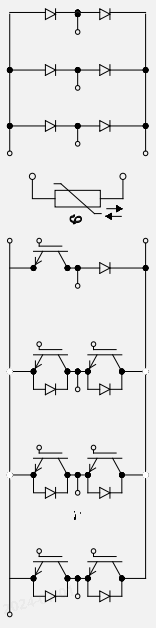

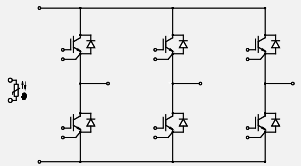

Circuit Diagram: | Specification | RedPower Part No. | Housing | Chip Technology | V CES(V) | I c(nom)(A) | VCE(sat)(V) | Size No. |
RG150F12N3M7RY | N3 | MPT-FS | 1200 V | 150 A | 1.5 | 1 | ||
RG200F12N3M7RY | N3 | MPT-FS | 1200 V | 200 A | 1.5 | 1 | ||
RG300F12N3M7RY | N3 | MPT-FS | 1200 V | 300 A | 1.5 | 1 | ||
RG75P12N3M7RY | N3 | MPT-FS | 1200 V | 75 A | 1.45 | 3 | ||
RG100P12N3M7RY | N3 | MPT-FS | 1200 V | 100 A | 1.45 | 4 | ||
RG150P12N3M7RY | N3 | MPT-FS | 1200 V | 150 A | 1.45 | 4 |
